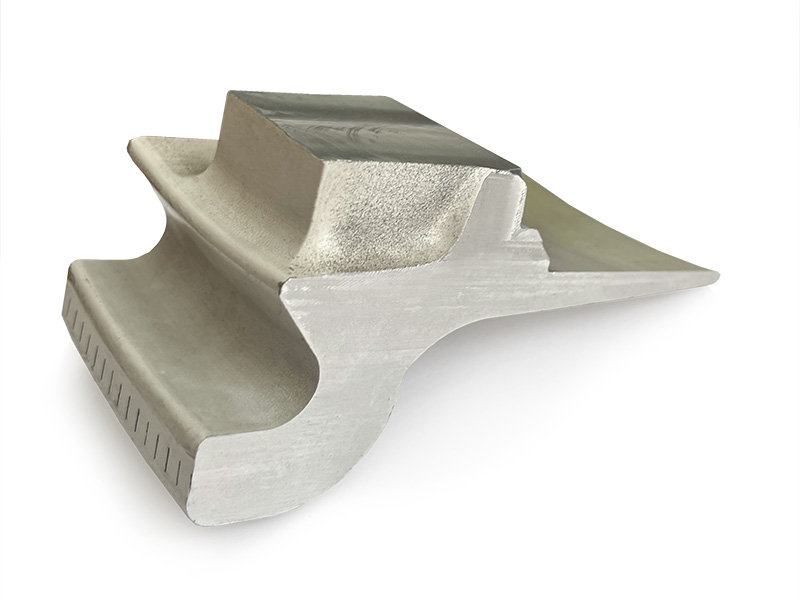

Calibration Blocks for Surface Defect Detection (of Irregular Shape)



Main Specification



Block name Designation Field of application Defects parameters Roughness of operating surface, µm Overall dimensions Material NOTE
Length, mm Width, mm Depth, mm
SOP UK Intended for setting-up the VD-132-K-IIIU-OKO-01 flaw detector Aircraft industry 1.27 0.127 0.635 Rа 1.25 140 х 120 х 80 Part of aircraft wheel hub Test block for wheels testing manufactured by:
Honeywell,
Goodrich,
ABSC
SOP TVK B- 1,2,3


Intended for setting-up the Eddycon, VD-132-K-IIIU-ОКО-01

Aircraft industry 1.6 0.15 0.3 Rа 1.25 150 х 130 х100 Part of aircraft wheel hub Test block for wheels testing, manufactured by
Honeywell,
Goodrich,
ABSC
SOP OF-1 В95 Intended for setting-up the Eddycon,VD-132-K-IIIU-ОКО-01 Aircraft industry 3.0 0.13 0.7 Rа 1.25 162 × 16 × 51 B95 aluminum alloys

Test block for
Boeing and McDonnell Douglas aircrafts testing

4.65 0.7
25.4 0.7; 1.2
3.18 0.7
1.5 0.7
2.8 0.7
4.1 0.7
